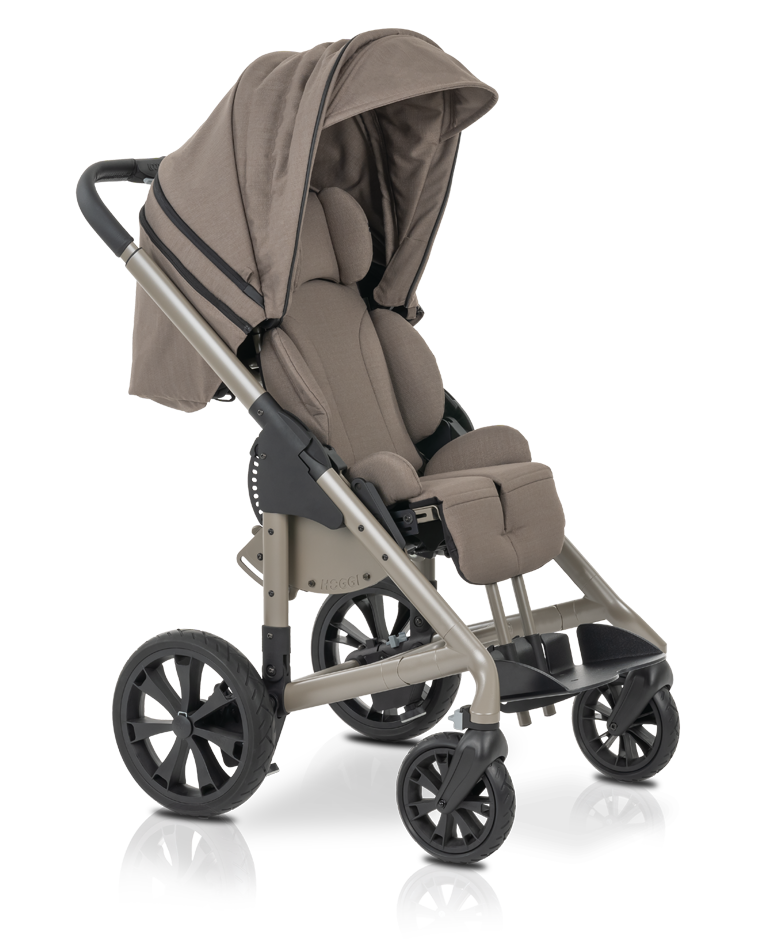

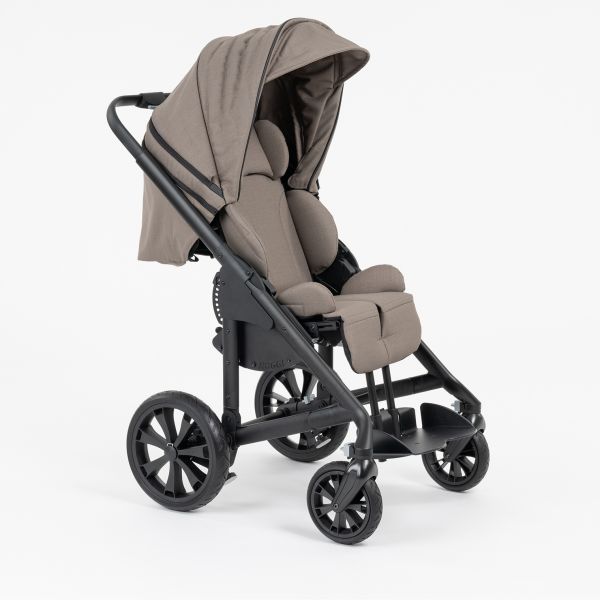

BINGO LOOP

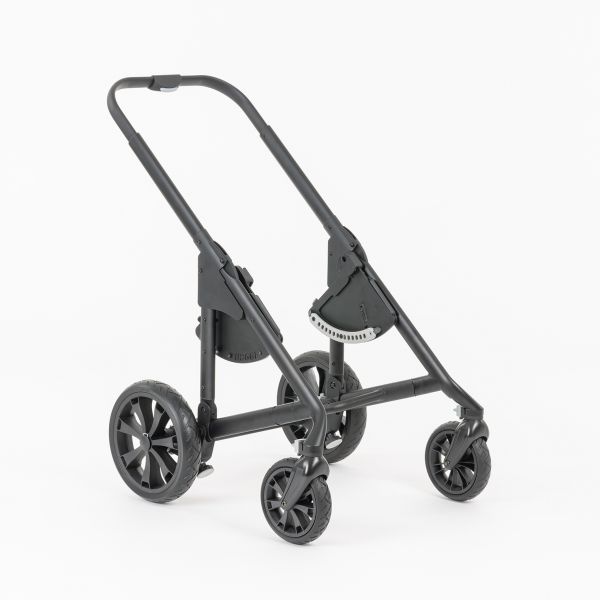

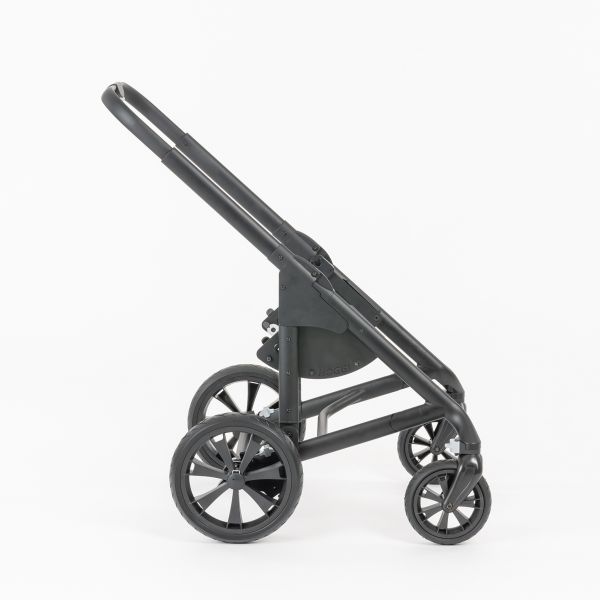

Innovative, stylish frame design

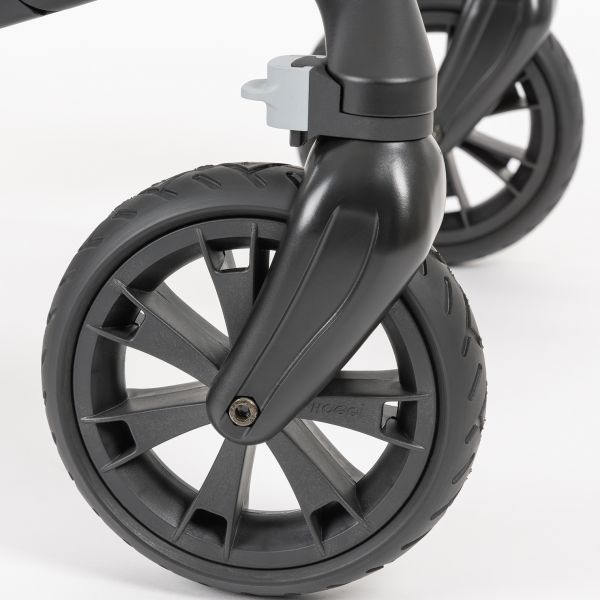

Easy to operate steering lock

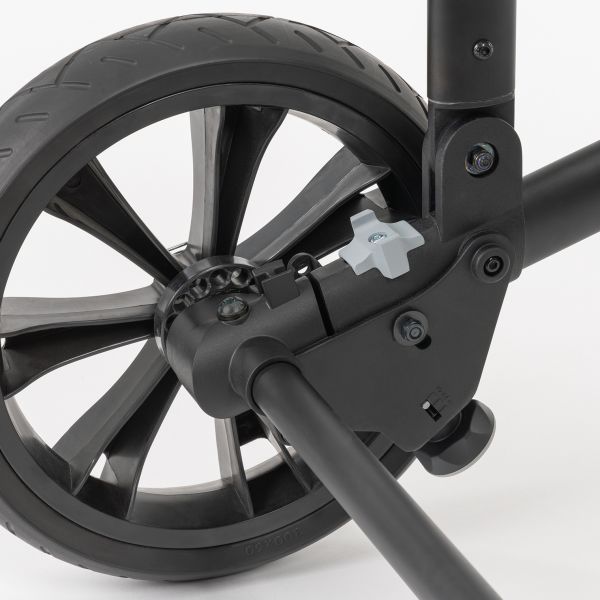

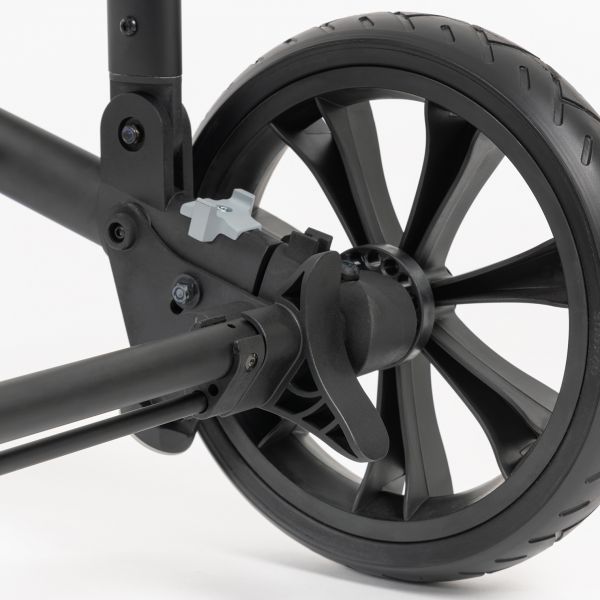

3-step suspension on the rear axle

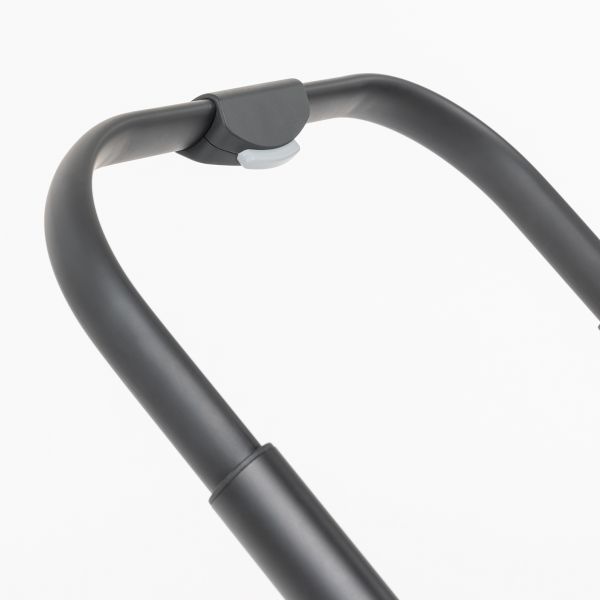

Telescopic push handle with central release

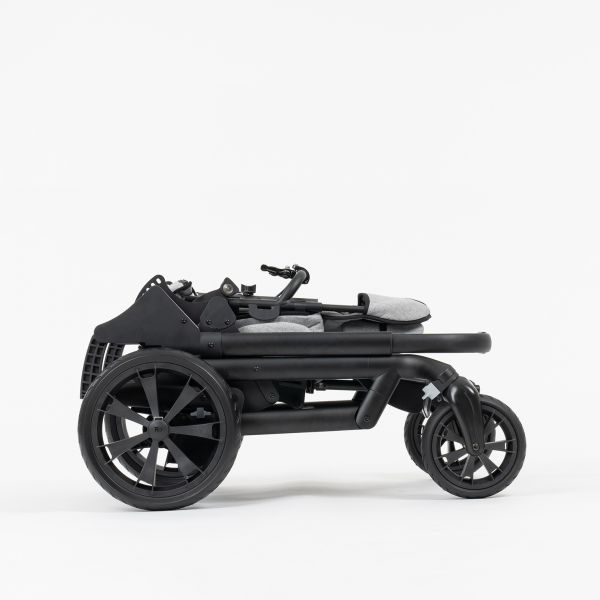

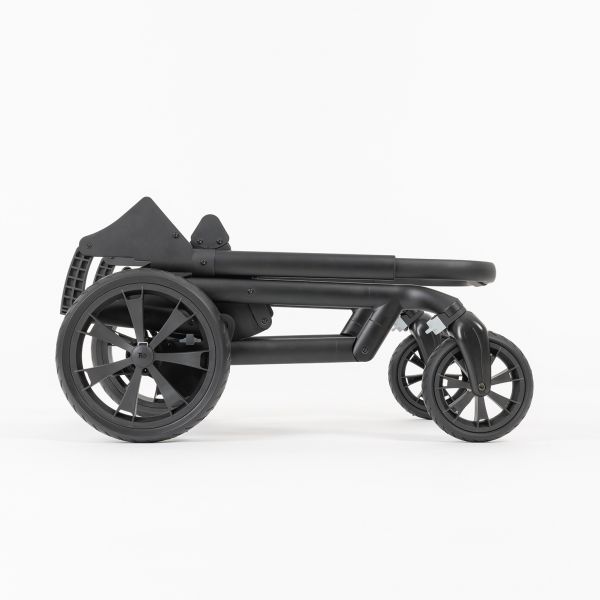

Folds compactly with one hand

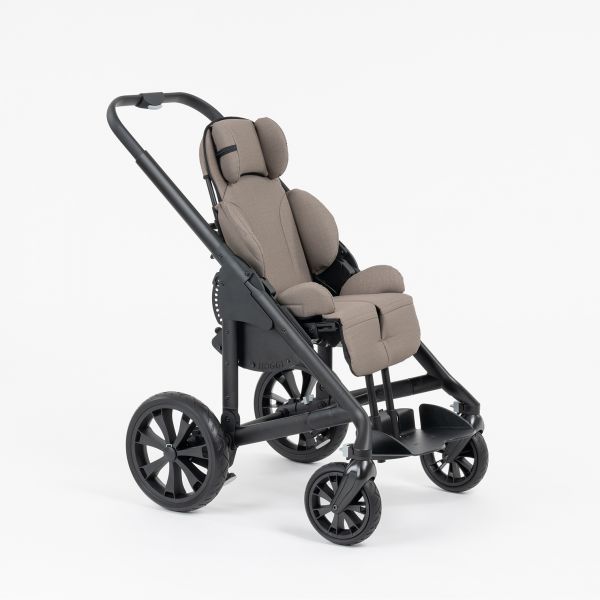

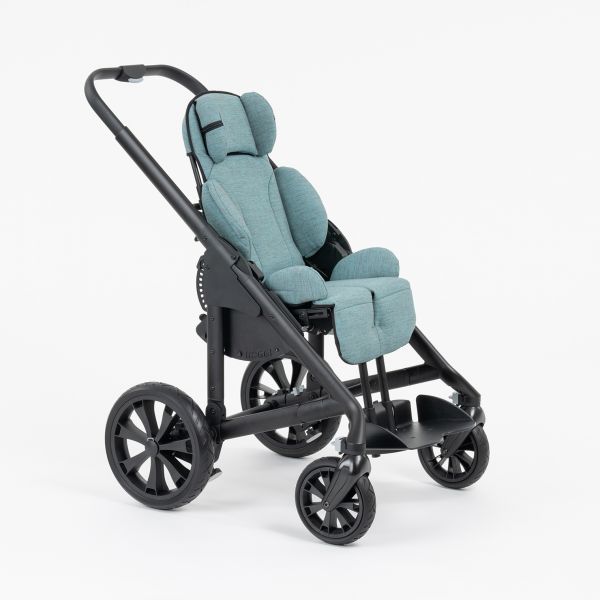

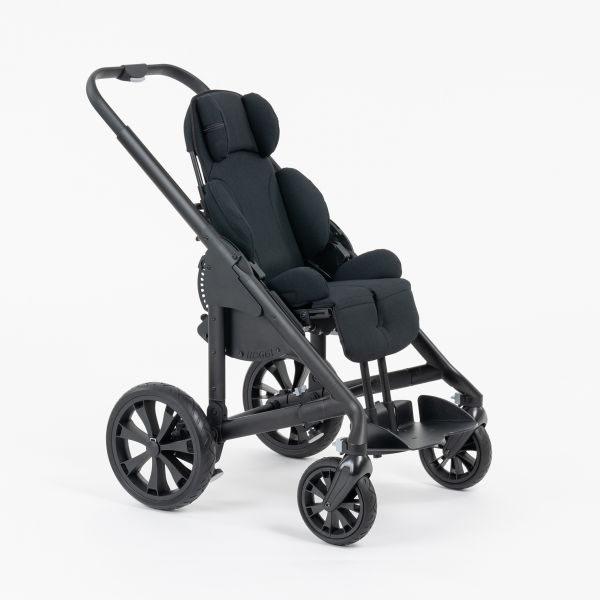

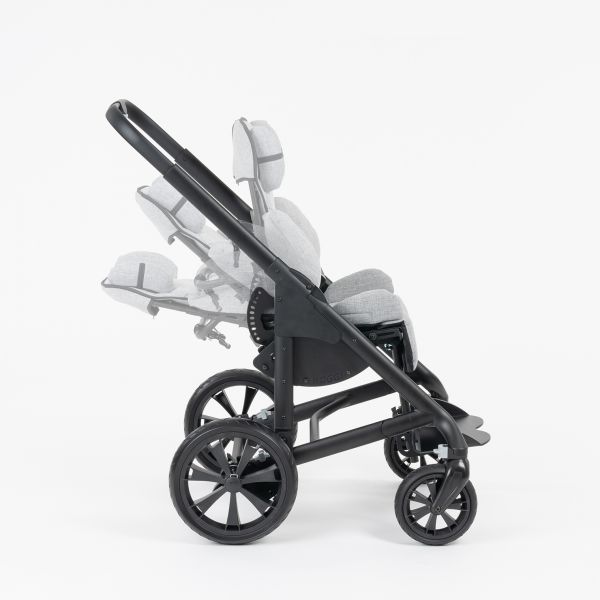

Proven, multifunctional seat unit with 45° seat tilt and adjustable backrest angle

	Mini	Size 1	Size 2	Size 2 XL	Size 3
Seat width	13 - 25 cm	18 - 30 cm	23 - 35 cm	23 - 35 cm	28 - 40 cm
Seat depth	12 - 27 cm	16 - 34 cm	22 - 40 cm	30 - 45 cm	30 - 45 cm

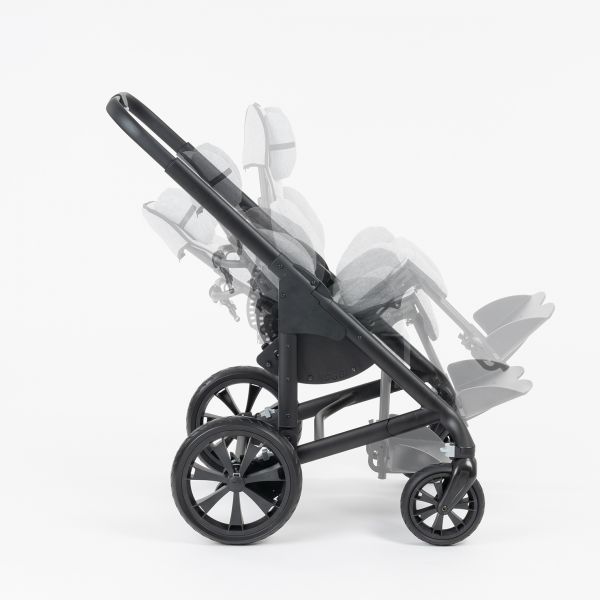

Tilt in space seat unit
Seat unit front facing	45°	45°	45°	45°	45°
Seat unit rear facing	45°	45°	45°	-	-
Back height	37 - 51 cm	45 - 63 cm	54 - 75 cm	62 - 83 cm	62 - 83 cm
Recline	80° - 180°	90° - 160°	90° - 160°	90° - 135°	90° - 135°
Lower leg length (footrest hanger, 90°)	-	16 - 37 cm	16 - 40 cm	16 - 40 cm	16 - 40 cm
Lower leg length (footrest hanger, angle adjustable)	16 - 30 cm	19 - 40 cm	19 - 40 cm	19 - 40 cm	19 - 40 cm
Push bar with ratchet joint	75 - 110 cm	75 - 110 cm	75 - 110 cm	86 - 118 cm	86 - 118 cm
Telescopic push bar	100 - 118 cm	100 - 118 cm	100 - 118 cm	100 - 118 cm	100 - 118 cm
Overall width	63 cm	63 cm	68 cm	68 cm	73 cm
Folding size swivelling frame (L x W x H)	84 x 63 x 43 cm	84 x 63 x 43 cm	84 x 68 x 43 cm	84 x 68 x 43 cm	84 x 73 x 43 cm
Weight limit
Seat unit	25 kg	50 kg	50 kg	50 kg	50 kg
Mobility base	60 kg	60 kg	60 kg	60 kg	60 kg
