// CLEO

Starting weight 6.85 kg
Innovative design
Modern and sporty
Growth capacity

Made in Germany

CLEO

The ultralight and active one

Ultralight rigid frame active wheelchair from 6.85 kg net weight with large growth capacity
Innovative design with multifunctional base plates as central components
Modern, sporty design
Back plate can be personalized with your own name or message

	Frame size 1	Frame size 2	Frame size 3
Seat width	24 - 30 cm	24 - 34 cm	26 - 34 cm
Seat depth standard	22 - 36 cm	22 - 40 cm	24 - 40 cm
Seat depth long	28 - 42 cm	28 - 46 cm	30 - 46 cm
Seat height	29 - 39 cm	32 - 42 cm	36 - 46 cm
Seat angle (adjustable)	0° to 11°	0° to 11°	0° to 11°
Backrest height	20, 25, 30, 35 cm	20, 25, 30, 35 cm	20, 25, 30, 35 cm
Backrest angle
Back, rigid	-10° to +10°	-10° to +10°	-10° to +10°
Back, angle adjustable	-5° to +35°	-5° to +35°	-5° to +35°
Lower leg length	13 - 36 cm	13 - 36 cm	13 - 36 cm
Footrest angle	-10° to +10°	-10° to +10°	-10° to +10°

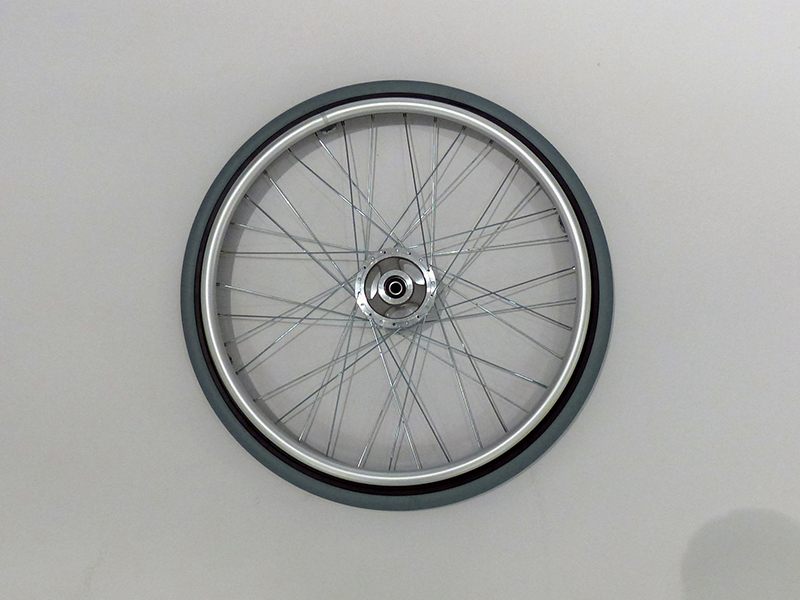

Rear wheel diameter	20"	22"	24"
Front wheel diameter	4", 5", 5,5"	4", 5", 5,5"	4", 5", 5,5"
Camber	6°, 9°, 12°	6°, 9°, 12°	6°, 9°, 12°
Load capacity	60 kg	60 kg	60 kg

Brochure spoke guards

Order form CLEO

Order form CLEO Ti

Order form spoke-guards

Spare parts catalogue

Spare parts catalogue for outdoor front end

Spare parts order // Spare parts request

Service manual CLEO

Service manual CLEO Ti

Declaration of Conformity CLEO

Declaration of Conformity CLEO Ti

HOGGI frame colours

HOGGI upholstery colours

Spacer fabric
Berry Soft
Turquoise Soft
Grey Soft
Black

Find our sales partners
